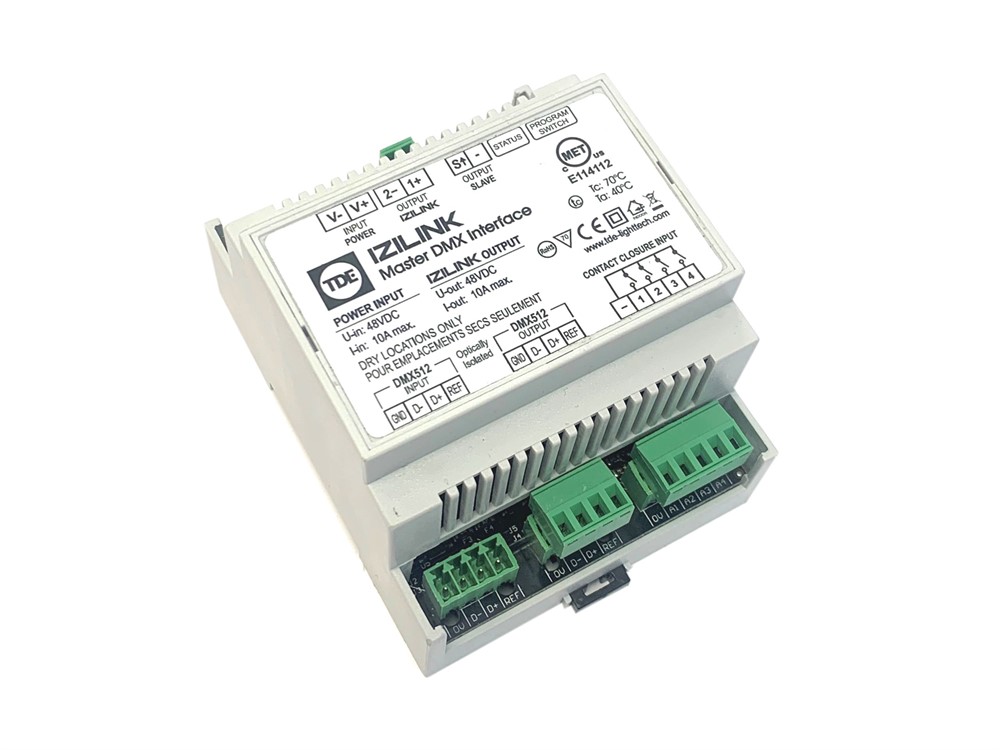

IZI-Link DMX Interface
The IZI-Link DMX interface is needed to setup an IZI-Link system. An IZILink system utilises powerline communication to transmit data over a low power voltage network, allowing you to control, monitor and configure each IZI-Link enabled product.
This technique eliminates additional control wiring to IZI-Link enabled LED-spots and LED-drivers which make the installation more reliable and easy to install. The IZI-Link system can easily be scaled into a larger network by adding IZI-Link interfaces.
The IZI-Link DMX Interface is controllable through DMX-512 and has 4 additional galvanically isolated contact inputs to override DMXcontrol for use as emergency contacts or local control switches.
Technical specifications
Power
| Input voltage |
48VDC |
| Output voltage |
48VDC IZI-Link |
| Output power |
Max. 480W |
| Current output |
Max. 10A |
Control
| Control input |
DMX-512 / 1990 galvanically isolated |
| Dry contact input |
4 galvanically isolated |
Material
| Housing |
DIN-rail (4 module width) |
| Input connector |
Print connector |
| Screw terminal power connections |
Max 2,5mm² |
| Screw terminal DMX-512 |
Max 1,5mm² |
| Screw terminal dry contacts |
Max 1,5mm² |
Accessories
IZI-Link / IZI-Link+, LED-drivers
