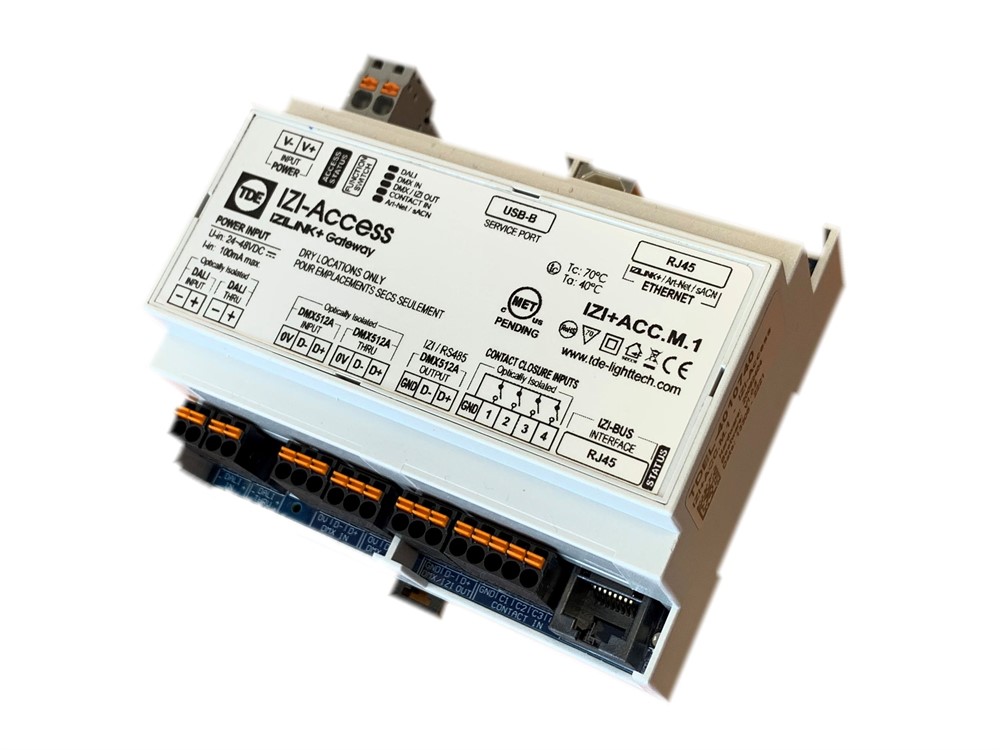

IZI-Access
The IZI-Access is the heart of the IZI-Link system and this gateway connects the IZI-Link system with Art-Net and sACN (Ethernet), OSC, DMX-512A (RS485) and DALI.
The IZI-Access is housed in a small DIN-Rail module and has a wide range of connection options, making the module a very useful node.
The special software environment (IZI-Supervisor), web interface and the numerous standard equipment and functions make this gateway universally applicable.
Technical specifications
Power
| Input voltage |
24 ... 48VDC |
| Maximum power consumption |
2.4 Watt |
| Maximum input current |
100mA |
Control
| Control inputs |
RJ45 - Ethernet / DMX512 / DALI /USB |
| Dry contact inputs |
4 galvanically isolated |
| Protocols |
Art-Net / sACN / OSC / DMX-512A / DALI / IZI-Link / IZI-Link+ / RS485 |
Material
| Housing |
DIN-rail (6 module width) |
| Power input: |
2-pole WAGO 2231-102 |
| DALI in- & output |
2 pole WAGO 714-102 |
| DMX input / thru & output |
3 pole WAGO 714-103 |
| Contact closure |
5 pole WAGO 714-105 |
