Nytt panel med bättre färgåtergivning & ljusstyrka & med 24-12VDC matning
Kostnadseffektiv Full HD field / OB / kontroll / studio monitor med 10-bit video infrastruktur och nytt True 8-bit panel för god färg referans. Inbyggd waveform & vectorscope i basform (vid SDI input).
Hanterar som standard alla SD & HD format inklusive SDI & 3G.

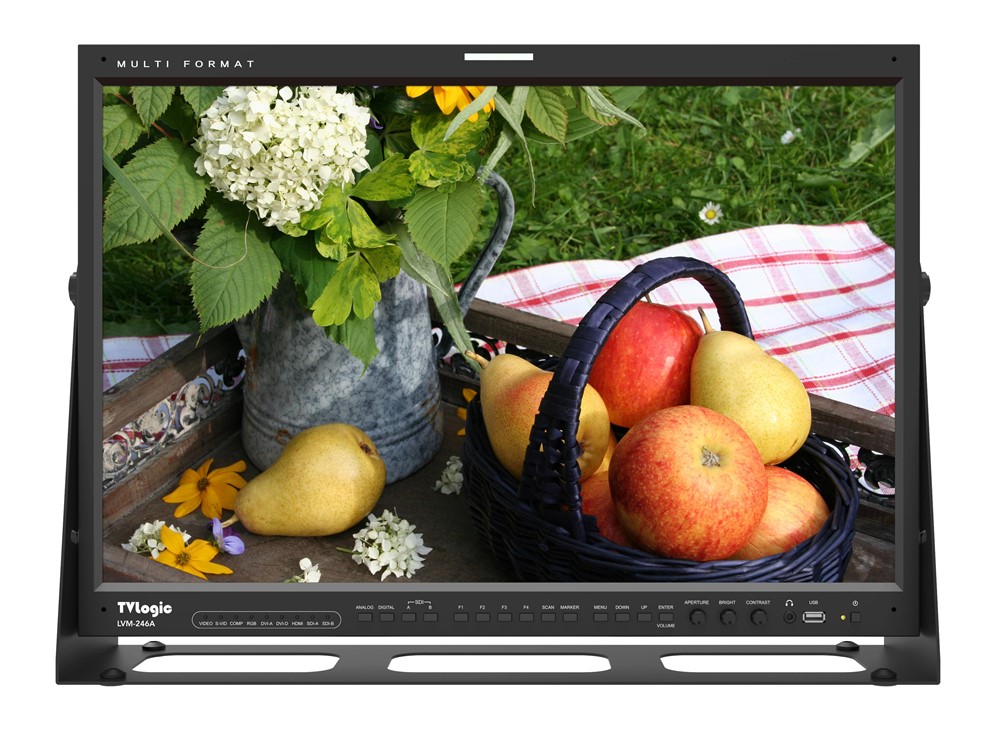

24” Full HD Display For Non-Critical Broadcast Monitoring Applications.
LVM-246A is a reasonable priced broadcast monitor with new full HD and wide viewing angle IPS LCD. It supports various video interface of SD/HD/3G-SDI, HDMI, DVI, Component Video, S-Video and CVBS. Also provides professional features such as Waveform & Vectorscope, Markers, Timecode, Closed Caption and color calibration.
- 1920x1080 Native HD Resolution (Panel Resolution 1920x1200) with High Contrast 1000:1
- 16.7 million colours (True-8bit)
- 600nits
- 2 x HD/SD SDI inputs w 1 output
- 1 x DVI-I input (w HDCP)
- 1 x HDMI input (w HDCP)
- Analog Component/Composite/S-Video/RGB Inputs w loop
- Audio Disembedder & Speakers
- Optional 19” Rack Mount Kit available (also VESA compatible)
- Supports TVLogic Color Calibration Utility for proper color alignment
- Optional ND filter
- Waveform/Vector scope (Y/Cb/Cr, Wide Type, Line waveform and Range Error)
- Marker
- User Aspect
- Blue Only/Mono
- Key lock
- H/V Delay
- Timecode Display
- UMD (ANC, Manual, Dynamic, User)
- Closed Caption (SDI) : CEA-608/708
- Monitor control using RS422/ Ethernet
- Embedded Audio Level Meter (16 ch)
- AC100-240V & DC12-24V
Tillbehör (köpes separat):
- ND glas.
- 19" rack mount (sitter "utanpå" rackskåpet)
Firmware
- Så här uppdaterar du firmware på LVM-170A, LVM-171A, LVM-182W, LVM-232W, LVM-246W.
- Klicka här för att ladda ner firmware-filerna.
