Kamera interface som handterar kameror med RS232, 433, 485 och LANC interface.
Får typiskt ström igenom RJ45 kablen (via ett PoE+ nätverk) och kan då också ge ström till kameran (mini kameror) och styra tillbehör som t.ex. motorer.
Kan även användas trådlöst genom 433-9000MHz eller 3G.

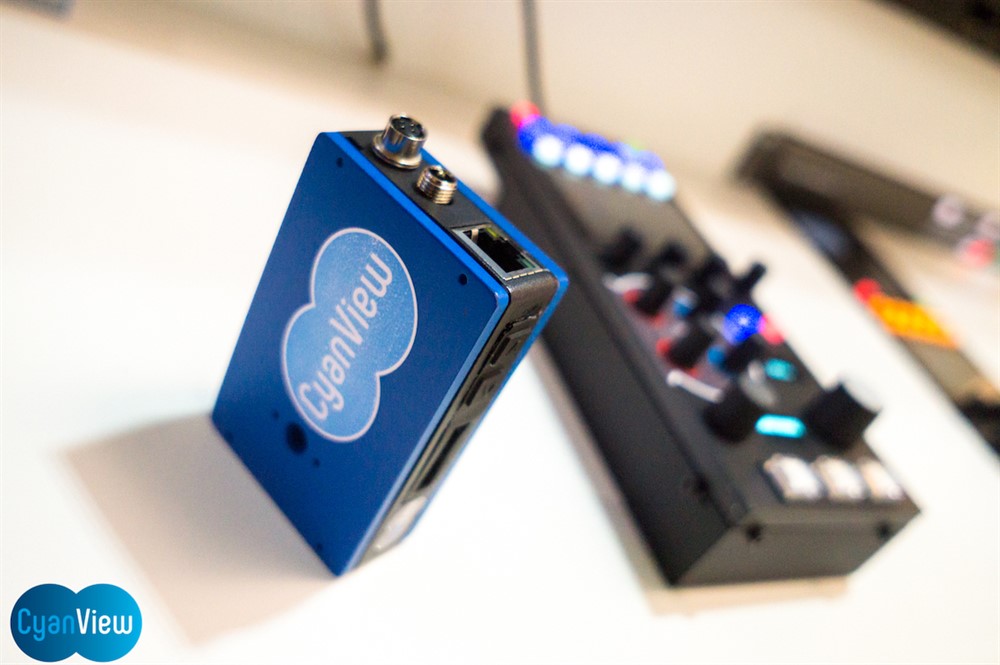

To date using speciality camera often meant the added burden of cabling, incompatible equipment, lack of connections, and so on. To address this key issue, we’ve designed the Cy-CI0 which is a generic Power over Ethernet (PoE) camera interface module that can be fixed to your camera or simply placed next to it.
From a single IP connection, it will directly power small cameras and control them using pre-made cables using all types of ports: RS232, RS422, RS485, LANC, TTL, DMX and more. It can also be used wirelessly over WIFI or serial RF modems.
We’re also designing motorization for focus and iris on most C-Mount lenses, controllable from our camera interface too. This interface could also relay control of robo heads through Pelco, DMX, etc.
A future version will add video over IP using lightweight compression like TICO or VC2 to keep compatibility with the affordable 1Gbps IP switches.
- Camera control: RS232,422,485 serial protocols and LANC
- 2 outputs to control 2 same/different cameras on one Cy-CI0 (not LANC camera)
- Lens control
- Accessories control
- Wireless through 433-900MHz/Wifi/3G
- PoE+ powers interface, camera and lens
=> only through a simple RJ45
