"One RCP to rule them all" - med iris kontroll!
2 kanals universell RCP för alla typer kameror som helt är IP baserat och med fysiska knappar, rattar, joystick, touch kontroll samt OLED informationsdisplay.
Inbyggd Gateway (GWY) och kan ström matas via ett PoE+ RJ45 nätverk som kopplas till en kamera inteface (t.ex. Cy-CI0) eller direkt till en IP kamera/kameror.
Används PTZ kameror kan man dessutom styra pan, tilt, zoom och fokus. Inkl. s.k. Sony RCP ram (för inbyggning) artikel CY-RCPFRAME.
Finns, förutom denna 2 kanals, i en 4 kanals, 8 kanals och en som handterar ett obegränsat antal kameror.

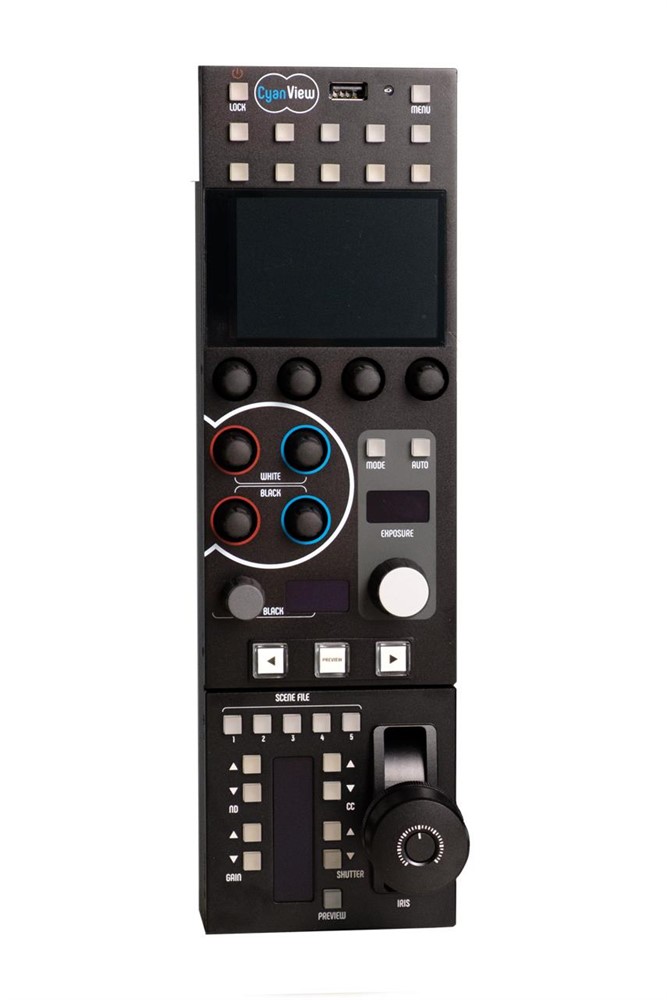

The CY-RCP-DOU-J is a universal remote control panel - now with joystick - for up to two cameras.
IP-based, it is ideal for any kind of production (even for remote production) and features physical buttons and joystick, rather than a web interface. With the added bottom module it has the form factor as regular remote controls and comes with a frame. This bottom section covers ND, color filters, gain, shutter and quick scene file selection, and of course iris/black/touchdown from the joystick.
To work efficiently, the system synchronises touch-down (and Tally) between the RCP and matrix: selecting a camera from the RCP also controls the matrix to switch the vision monitor and selecting another camera from the matrix panel also changes the displayed camera on the RCP.
Specialty cameras usually lack video processing features in various ways, meaning that often colour correction equipment are added for post-processing and frame sync. We’ve integrated these as well from our RCPs in a seamless blend of camera and post controls. So, whatever is available in the camera head is controlled there and what is missing (i.e. black balance, gamma) is done in the post-production phase by controlling the video corrector. The camera interface stays consistent from one camera to another, on one camera saturation might be applied in the head while on the next one, the same knob will control saturation on the video corrector.
The RCP is supported by the Cy-CI0 which from a simple RJ45 connection enables control of cameras, lenses and other accessories via RS232, RS422, RS485 and LANC serial protocols. Power is provided via PoE+ or separate AC adapter. Direct connection to IP cameras also possible.
Supported Functions
Cyanview’s RCP features much of the functionality found on broadcast CCU remotes.
- White balance Manual/AWB/ATW auto modes
- Black balance, ABB
- Master Black and Black Gamma
- Iris, Gain, ND & color filters
- Shutter, Clear Scan, quick scene
- Iris/black/touchdown from the joystick
- AUTO Iris, Auto Focus
- Saturation, Matrix, Multi-Matrix
- Knee, White Clip
- Detail, Coring, Skin Detail
- Denoise
- Tally display and GPIO input
- Full Camera OSD Menu Access and Navigation
- Touchscreen for Pan & Tilt or Gimbal control
- Auto/manual focus, Zoom when available
- Camera switching and Touch Down
- Scene files for all cameras, option to save all at once
- Custom Camera functions based on selected models
- Satus Information, IP addresses, remote connection
