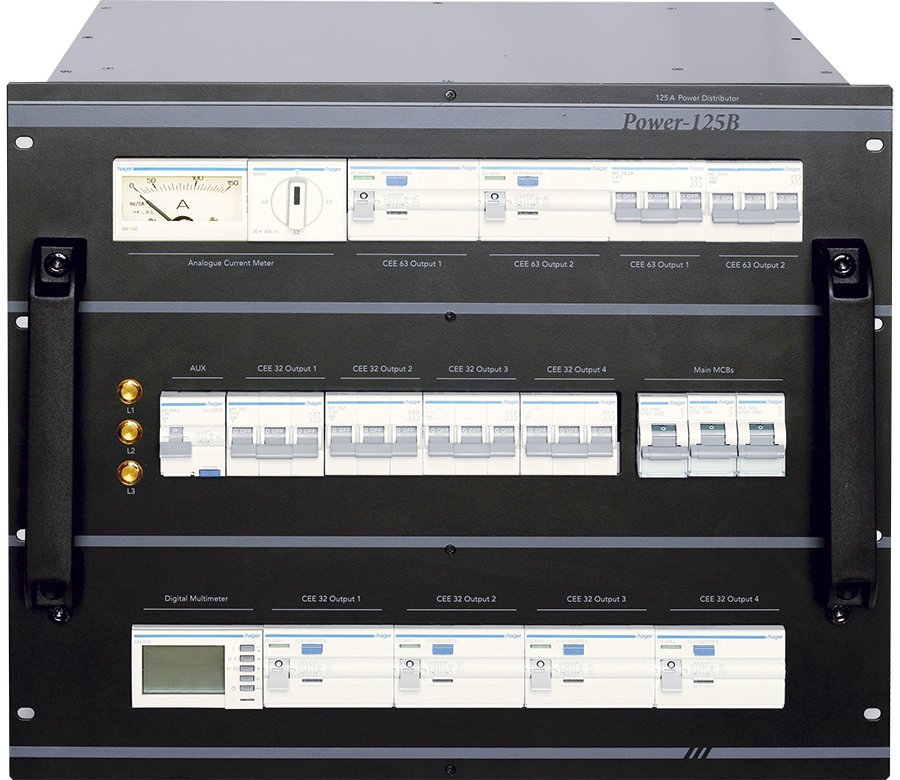

IN 125A CEE UT 4x32A CEE, 2x10A schucko Jordfelsbrytare Mätare för A och V
- 3×125 A input via male CEE connector (fixed to the back panel)
- 3×1P C125A circuit breakers for mains protection
- Two 3-phase 63 A outputs on CEE63A 5P socket protected with 3×1P C63A 6 kA MCBs and 63A/300 mA RCDs (Power-125B only)
- Four 3-phase 32A outputs on CEE32A 5P socket protected with 3×1P C32A MCBs and 40A/30 mA RCDs
- AUX 16 A Schuko outputs on the back with RCBO (MCB-RCD combination; C16A/30 mA)
- Digital multimeter (DMM) to monitor the main features of the incoming power line:
- voltage between phases
- voltage between phases and neutral
- current on each phase
- line frequency
- operating time
- peak and average display
- Additional analogue current meter (only in Power-125B)
- 19” rack 6U 484×264×250 mm (W×H×D, plus connectors)
- 25 kg (net), 28 kg (gross)
